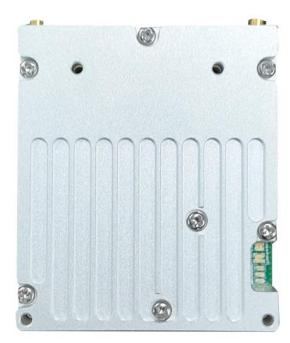

ZKmanet 3460H-UAV Airborne FHSS MESH Datalink
ZKmanet3460H-UAV is a FHSS MESH airborne datalink with adaptive frequency hopping and intelligent frequency selection functions,integrated 2x1W RF power amplifier, compact and light , convenient installation, simple operation, can be installed as an airborne platform in different types of UAV, it can also be placed in vehicles or on a fixed support as a ground station.
◆ Adaptive frequency hopping and intelligent frequency selection;
◆ Data rate up to 48 Mbps;
◆ Encryption supports DES/AES128/256;
◆ Full IP duplex transparent data transmission;
◆ Small size and light weight;
◆ 2X2 MIMO, complete functions and rich frequency bands;
◆ Ultra Low Delay,Long Range,Bidirectional Multi Channel;
◆ Anti-interference mode supports manual spectrum scanning channel selection, Intelligent frequency channel selection/autonomous frequency hopping/roaming mode optional.
| Model | ZKmanet 3460H-UAV | Brand | ZKMANET |
System Parameters
| Frequency | 1350-1450MHz(customizable),1Hz step adjustable |
| Modulation Type | QPSK/16QAM/64QAM/256QAM(adjustable) |
| Bandwidth | 1.25/2.5/5/10/20MHz |
| Encryption | DES56/AES128/AES256 |
| Receiving Sensitivity | ≤-103dBm@5MHz |
| Antenna Interface | MMCX *2 |
| RF Power | 2*1W,dual channel |
|
| Modulation | COFDM |
|
| Duplex Mode | TDD |
| Network Capabilities | no less than 64 nodes |
| Physical/Environment | Dimensions | 56*48*11mm |
| Weight | 45g |
| Working Temp | -40°C~+55°C |
| Electronic Parameters | Power Supply | DC7V~30V, typical 12V@2A |
| Power Consumption | ≤20W |
